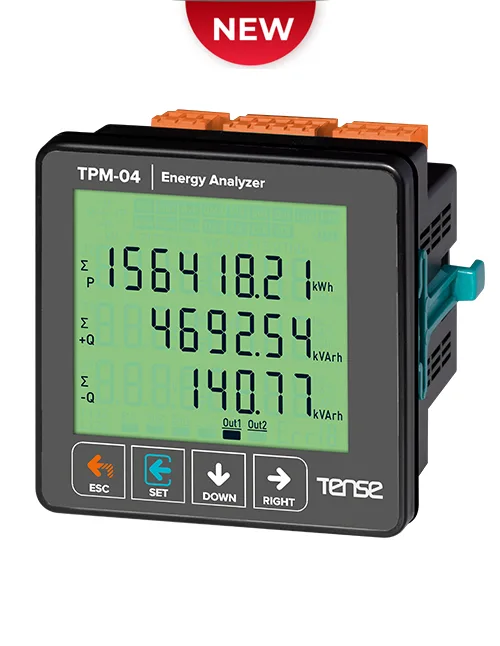

Energy analyzer with LCD display
- Reference: TPM-04
– Easy installation and operation with 71.5 × 61.5 glass LCD display
– With three-phase voltage and current transformers
– Easy-to-use menu
– Displays voltage and current harmonics up to the 31st harmonic
– Remote communication with RS485 (RS485 ModBus RTU)
– Shows active power per phase (P)
– Shows reactive power per phase (Q, inductive and capacitive)
– Shows apparent power per phase (S)
– Displays cosφ and power factor values for each phase
– Displays voltage (V) and current (I) values for each phase
– Displays total active energy import and export values (ΣkWh)
– Displays total inductive and capacitive reactive energy values (ΣkVArh)
– Displays minimum and maximum values
– It displays demand values
– Energy values can be reset
– Password-protected menu
– 1 relay outputs (adjustable)
– Event logging (high/low voltage/current, voltage/current imbalance, THD-I)
