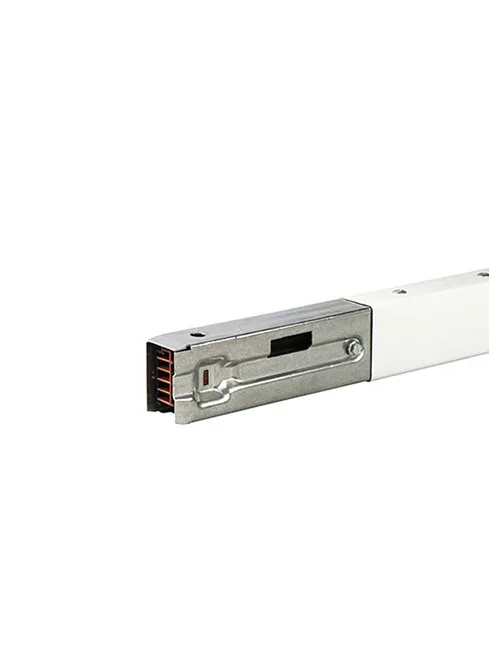

Canalis KBA – straight element 25A – 3m white 1L+N+PE 2 windows
- Reference: KBA25ED2302W
Straight section of Canalis busbar for KBA. Dedicated to lighting and socket-outlet distribution. Operating voltage is 230VAC at 50/60Hz to 400VAC at 50/60Hz. Rated operating current is 25A at 35 ℃. It has a white RAL 9003 surface treatment. Straight busbar that mounts with clips and whose busbar polarity is L + N + PE. Designed with 2 branch outputs. Provides a radiated magnetic field of 2 pT. Sold in packs of 6 units. It offers IP55 protection in compliance with EN/IEC 60529. IK06 complies with EN / IEC 62262. It complies with both IEC 60439-2 and IEC 61439-6 standards. It also complies with Green Premium (RoHS / REACH).
