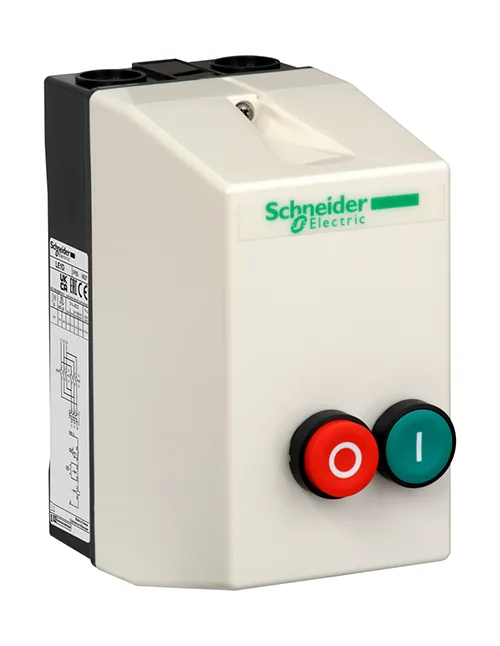

• TeSys LE1D – Enclosed starter – 9A – 230V AC coil
TeSys starter included with a contactor, 3 poles, Ithe 9A 690V, is designed for non-reversing motor applications up to 4kW at 400V in AC-3. The polycarbonate enclosure provides IP65 / IK07 protection, equipped with a green Start (I) push button and a red Stop / Reset (O) push button. It includes an LC1D contactor with a 230V 50/60Hz control circuit. To operate, it must be equipped with an LRD02-LRD14 thermal overload relay according to the motor power (to be ordered separately). Surface mounting enclosure with screw fixing, 2 outlets with cable glands top and bottom. Compliant with IEC 60947-4-1 standard, and Green Premium compliant (RoHS / REACh).
Technical sheet
